SITE CHECK 01
Level + load-bearing
Confirm the surface can support the filled system.
SETUP & CARE GUIDE
Set up your Resolute Pro. The right way.
From curbside delivery to your first plunge, this is the fast path to cold therapy, hot recovery, and a routine that runs itself.
- Self-contained system
- Ozone purification
- Indoor or outdoor
Cold therapy.
Hot recovery.
Hot recovery.

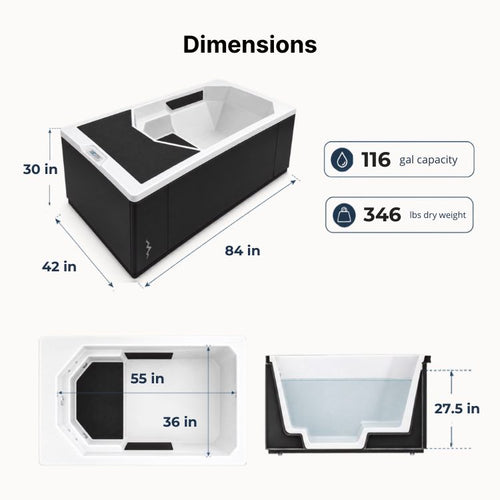

84″ × 42″
Footprint
116 gal
Fill volume
120V / 15A
Power
40–104°F
Temperature
24/7
Circulation
01 — PREPARE THE SITE
Stable surface. Safe access. Smart placement.
Use a level, load-bearing surface with a drainage plan and enough clearance to open the cover and reach the maintenance panel. A concrete pad is the preferred installation surface.

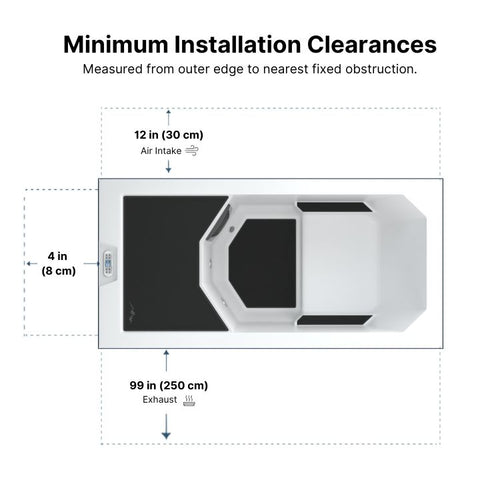

SITE CHECK 02
Clearance
Leave room for the cover, service access, and future maintenance.
SITE CHECK 03
Power
Plan for the required 120V / 15A connection and local code.
SITE CHECK 04
Drainage
Know where water will go when draining your tub for cleaning or drain-down.
02 — DELIVERY DAY
Plan the move before the truck arrives.
Standard Resolute Pro delivery is curbside by LTL freight. White Glove Delivery is available for placement inside your home or at your preferred outdoor location.
IMPORTANT
The unit is listed at 346 lb dry and approximately 1,315 lb filled. Choose the final location before filling, and never attempt to move a filled unit.
Clear the path from curb to final location.
Photograph the crate and unit before unpacking.
Record visible freight damage before signing.
03 — FIRST SETUP
Fill it. Power it. Start recovering.
The Resolute Pro is self-contained. There is no external chiller to assemble. Use the latest owner's manual for control-panel, app-pairing, and exact startup instructions.
OWNER'S MANUALS
Resolute Pro Owner's Manual
Control Panel Guide
Wi-Fi App Guide
STEP 01
Fill
Close the drain and fill to the operating range specified in the manual.
STEP 02
Power up
Connect approved power, start circulation, and set your target temperature.
STEP 03
Set Pump Mode & Connect Wi-Fi
See Owner's Manual for instructions
Protect your chiller
Before You Begin
A few simple habits will help protect your chiller, keep your water clean, and prevent avoidable setup issues.
Important
Let the chiller handle sanitation
Your Icebound chiller uses continuous circulation, dual-stage filtration, and integrated ozone to help keep the water clean. Do not add Sirona Simply Sanitizer, Ouster Cold Plunge Weekly Treatment, or other unapproved sanitizers—we have seen corrosion in systems where these products were used. If you choose to add a sanitizer, use only food-grade hydrogen peroxide and monitor the level with compatible test strips.
01
Circulation
Keep the water moving
Run your chiller regularly so water continues cycling through the filter and ozone system. If you turn it off for an extended period, disconnect the hoses and allow the unit to drain rather than leaving warm, stagnant water in the lines.
02
Water chemistry
Test your water periodically
Check pH and total alkalinity to keep your water balanced and help protect the system. Proper alkalinity helps stabilize pH and reduces sudden swings. See our water maintenance guide for detailed water care information.
03
Cold weather
Protect the system from freezing

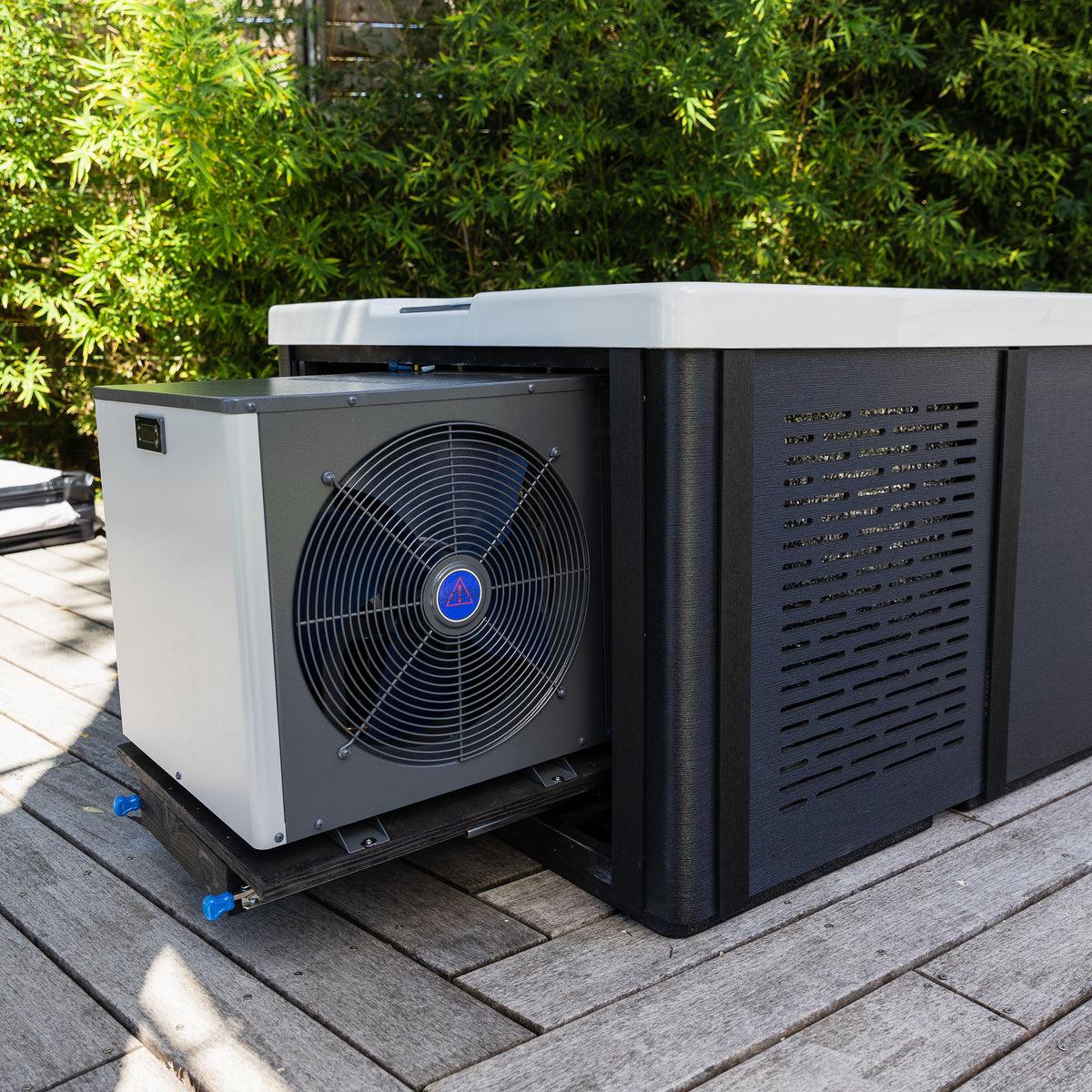

Do not operate the chiller when ambient temperatures are below freezing. If you are storing the system for the season, drain it completely and follow the winterization instructions.
04
Future service
Keep the original packaging
Hold onto the shipping crate, box, and protective packaging. You may need them if your chiller ever requires service or return transportation.
04 — WATER CARE
Low maintenance still means consistent care.
Ozone purification, continuous circulation, and filtration do the heavy lifting. Your routine keeps the water clear and the system protected.
Keep the cover closed between sessions.
Shower before entering.
Rinse the main filter every 2 weeks.
Replace the filter every 3–6 months, based on use.
Use only products approved for the Resolute Pro and follow the current manual's water-chemistry guidance.
05 — TROUBLESHOOTING
Quick answers when something looks off.
The system does not power on
Confirm the approved circuit is on and the connection is secure. If power is still unavailable, stop and contact a qualified electrician or Icebound Essentials support. Do not open electrical compartments.
The water is not moving
Confirm the water level is correct and inspect the filter and accessible intake areas for blockage. Follow the owner's manual before restarting the system.
The water is cloudy or has an odor
Check the filter, circulation, and approved water-care routine. Replace or clean the filter as needed and follow the current manual's water-chemistry guidance.
The temperature is not changing as expected
Confirm circulation is running, the cover is closed, and the target temperature is set correctly. Allow adequate time for the system to heat or cool.
There is a leak
Turn off power before inspecting the accessible plumbing area. Verify that serviceable fittings are secure, then contact Icebound Essentials support if the leak continues.
Connecting to Wi-Fi 🛜
Download Mobile App
Start by downloading Huilian Smart (iOS & Android compatible).
Chiller Wi-Fi Status
The Wi-Fi icon at the top of your control panel tells you what's going on with your connection at a glance:
- Blinking rapidly — Ready to pair with the smart app. Go ahead and connect!
- Blinking slowly — Wi-Fi needs a reset before pairing. See the Wi-Fi Reset tab below for instructions.
- Solid — Connected and good to go.
Resetting Your Wi-Fi
- Cycle the power using the two red Test and Reset buttons on the GFCI — located on your plug or on the back of the chiller depending on your model.
- Unlock the control panel.
- Press and hold two buttons simultaneously: the left button (☰) and the bottom button ( − ).
- Hold for ~6 seconds until you hear a beep, then release. You should see the Wi-Fi icon blinking rapidly.
- Repeat step 3 — press and hold the same two buttons until you hear another beep and the Wi-Fi icon is blinking rapidly.
- You're ready to pair! Open the app and connect.
Add Chiller to the App
Connect your phone to Wi-Fi and make sure Bluetooth and location access are enabled.
- 💡 2.4GHz networks offer better range and stability, but 5GHz works too.
- Open the app and tap "Add Device" or the + button.
- Enter your Wi-Fi network password when prompted.
- The app will handle the rest — your chiller should appear as connected within a few seconds.
06 — SUPPORT
Bring the details. We'll help you move faster.
When you contact Customer Care, include your order number, a short description, when the issue started, and clear photos or a short video.
RECOVERY IS READY WHEN YOU ARE.
